TL;DR

If you are using Windows or Linux, you must buy SyncStitch with only 64,800 JPY!

About CSP and SyncStitch

We had “SyncStitch hands-on” on 静的コード解析の会 at Tokyo. This hands-on purpose is to introduce CSP (Communicating Sequential Processes) and use SyncStitch to get modeling on concurrent systems.

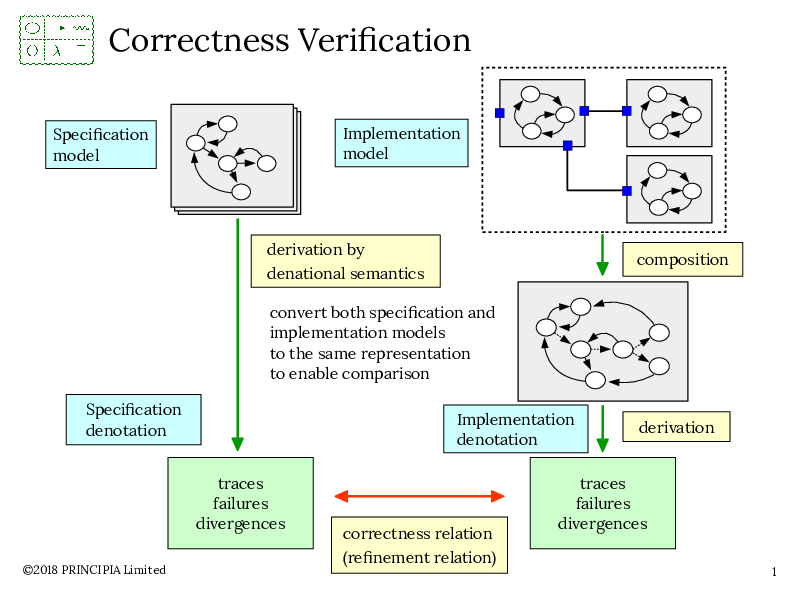

On CSP, developer can write Specification model and split it into some Implementation models connected by channel.

After getting models, developer can get correctness relation using SyncStitch.

Install SyncStitch

• Download SyncStitch from here
• Buy License of SyncStitch
• Unzip SyncStitch:

$ sudo apt install unar gcc fonts-open-sans fonts-inconsolata
$ mkdir $HOME/bin
$ cd $HOME/bin
$ unar SyncStitch-linux.zip
$ cd SyncStitch-linux/bin
$ chmod +x ssg ssgsvr syncstitch
$ export PATH=$(pwd):$PATH

• Edit $HOME/.syncstitch:

$ vi $HOME/.syncstitch
(
; (dpi . 96)
 (system-font-face . "Open Sans")
 (system-font-size . 11)
 (small-font-size . 9)
 (code-font-face . "Inconsolata")
 (code-font-size . 12)
 (handle-size . 3)
 (syncstitch
 (license-key . "___YOUR OWN LICENSE KEY___")
  (node . "127.0.0.1")
;  (node . "::1")
  (service . "50000"))
)

Launch SyncStitch

• Run ssgsvr

$ (cd $HOME/bin/SyncStitch-linux/bin && ./ssgsvr)
num_workers:     1
heap_size (GiB): 1
hashtable size:  4000037
port no:         50000

• Launch syncstitch on the other terminal

$ syncstitch

• You should show a green window which is the SyncStitch GUI

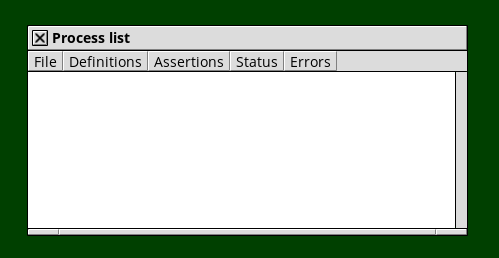

• Click the right button of your mouse and select “New model”

• A window for a new model will open.

Try to open an existing model

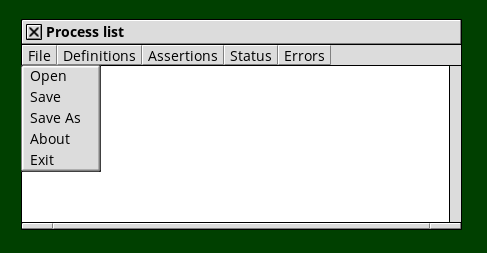

• Open “File” menu, and select “Open”

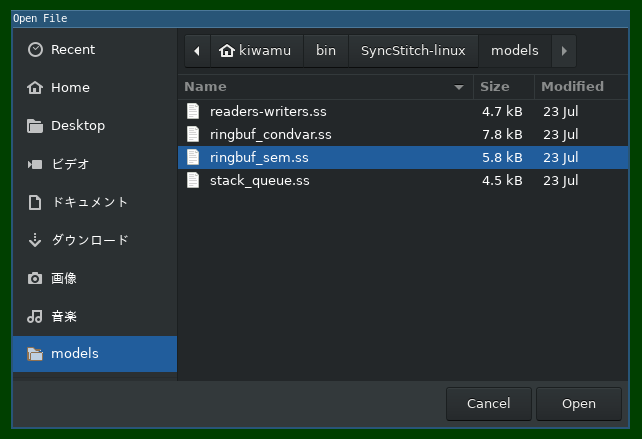

• Open SyncStitch-linux/models/stack_queue.ss file

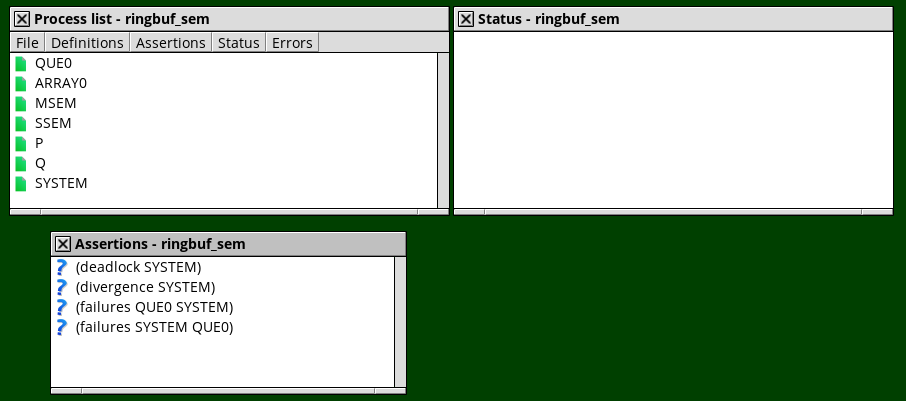

• You should show Process list and Assertions

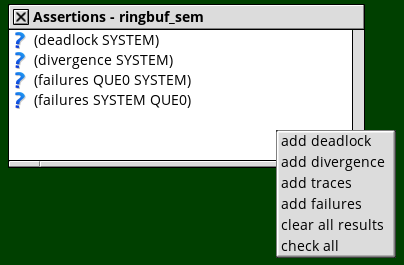

• Click the right button of your mouse and select “checkall”

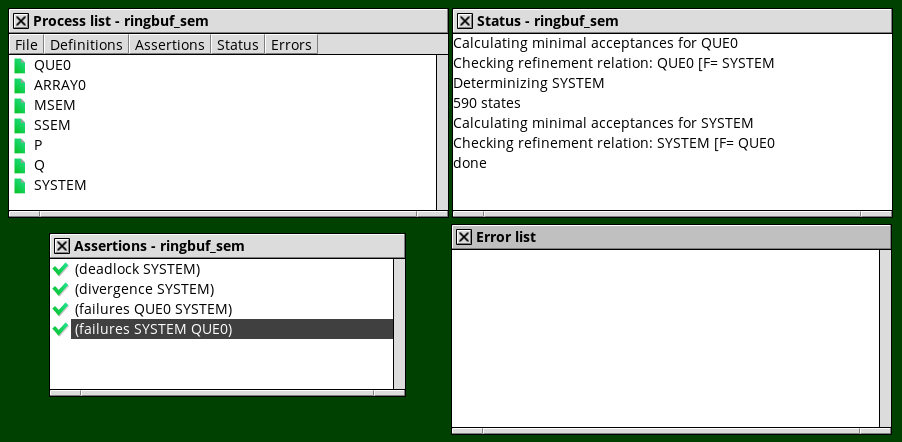

• You should show that the ring buffer SYSTEM is soundness in CSP!

More

Please read SyncStitch-linux/doc/SyncStitch_Users_Guide.pdf. You can feel free to tweet with hastsugai, or e-mail isaac@principia-m.com.

Copyright of this blog post

Copyright (C) 2018 PRINCIPIA Limited.
